Airmar B75C-0-M 0d Tilt Medium CHIRP Raymarine 11-Pin Cable

(No reviews yet) Write a Review
SKU:
AIRB75C0M11R
MPN:
B75C-0-M-11R
Condition:
New
MSRP: $979.98
$852.16
— You save $127.82

Description

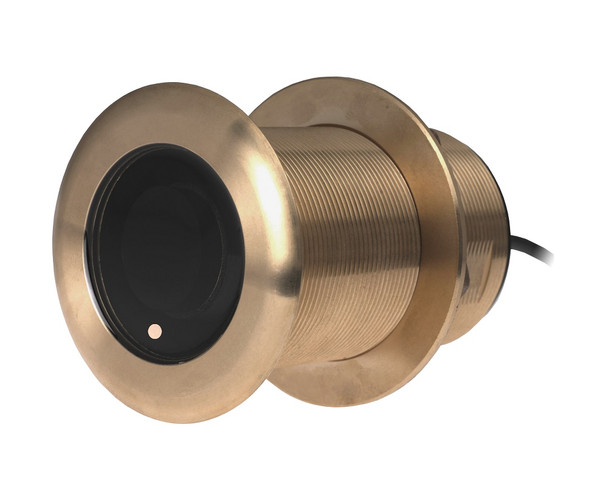

Airmar B75C 0° tlted element Medium CHIRP Bronze Thru Hull with Raymarine 11-Pin Mix-N-Match Cable

Model: B75C-0-M-11R
  • Depth & fast-response water-temperature sensor
  • 600 W of power with a maximum depth of 274 m (900')
  • Medium frequency: 80 to 130 kHz
  • 24° to 16° beamwidth
  • Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
  • Low-profile, thru-hull housing delivers good display resolution at speed when installed properly
  • Bronze housing for use in a fiberglass or wood hull
  • Patented Xducer ID® technology

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications
Deadrise Range0° to 7°
Hole Size70 mm (2-13/16")
Housing MaterialBronze
Deadrise0° to 7°
Maximum depth900ft
Medium Frequency80 to 130 kHz

What's in the Box:
  • B75C-0-M-MM
  • MMC-11RHM Cable
